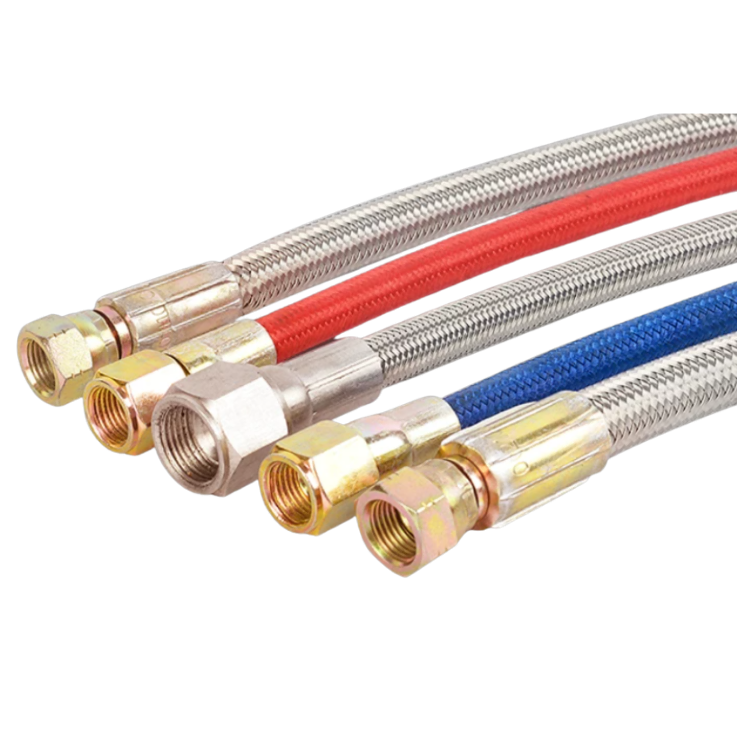

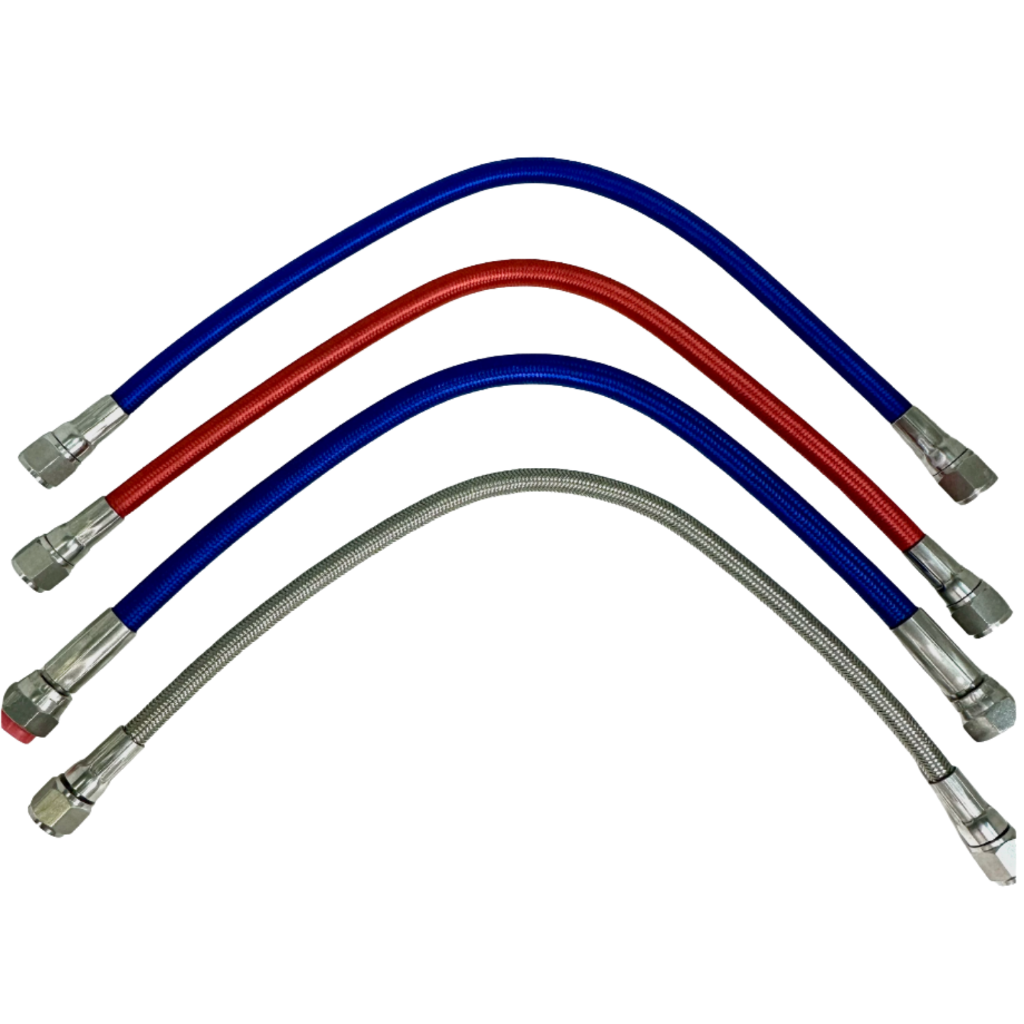

Teflon (PTFE) Oil Hose

•Features a high-strength stainless steel braided outer layer with a Teflon (PTFE) inner lining for superior pressure resistance and explosion-proof safety. •Engineered to withstand extreme temperatures and high-pressure conditions while providing exceptional chemical corrosion resistance and an extended service life. •Designed with a dense braid pattern that effectively absorbs hose vibration energy, offering high fatigue resistance and anti-aging properties. •Available with a complete range of fitting configurations and fully supports professional bespoke manufacturing based on your specific drawings.

Contact Us
SPECIFICATIONS
Metric Fine Thread
Major Diameter for 6g External Thread
Minor Diameter for 6H Internal Thread
No.
Model
Max.
Min.
Tolerance
Min.
Max.
Tolerance
1
M10*1
9.974
9.794
0.18
8.917
9.157
0.24
2
M12*1.5
11.968
11.732
0.236
10.376
10.676
0.3
3
M14*1.5
13.968
13.732
0.236
12.376
12.676
0.3
4
M16*1.5
15.968
15.732
0.236
14.376
14.676
0.3
5
M18*1.5
17.968
17.732
0.236
16.376
16.676
0.3
6
M20*1.5
19.968
19.732
0.236
18.376
18.676
0.3
7
M22*1.5
21.968
21.732
0.236
20.376
20.676
0.3
8
M24*1.5
23.968
23.732
0.236
22.376
22.676
0.3
9
M26*1.5
25.968
25.732
0.236
24.376
24.676
0.3
10
M27*1.5
26.968
26.732
0.236
25.376
25.676
0.3
11
M30*1.5
29.968
29.732
0.236
28.376
28.676
0.3
12
M27*2
26.962
26.682
0.28
24.835
25.21
0.375
13
M30*2
29.962
29.682
0.28
27.835
28.21
0.375
14
M33*2
32.962
32.682
0.28
30.835
31.21
0.375
15
M36*2
35.962
35.682
0.28
33.835
34.21
0.375
16
M42*2
41.962
41.682
0.28
39.835
40.21
0.375
UNF 2A
Major Diameter for External Thread (UN/UNF)
Minor Diameter for Class 2B Internal Thread (UN/UNF)
No.
Model
Max.
Min.
Tolerance
Min.
Max.
Tolerance
1
7/16"-20
11.079
10.874
0.206
9.728
10.033
0.305
2
9/16"-18
14.252
14.031
0.221
12.751
13.081
0.33
3
3/4"-16
19.012
18.773
0.239
17.323
17.678
0.356
4
7/8"-14
22.184
21.923
0.262
20.269
20.676
0.406
5
1(1/16)-12
26.944
26.655
0.29
24.689
25.146
0.457
6
1(5/16)-12
33.294
33.005
0.29
31.039
31.496
0.457
7
1(5/8)-12
41.229
40.94
0.29
38.989
39.446
0.457
8
1(7/8)-12
47.579
47.29
0.29
45.339
45.796
0.457
9
2(1/2)-12
63.452
63.162
0.29
61.214
61.671
0.457
British Standard Pipe Thread
No.
Model
Max.
Min.
Tolerance
Min.
Max.
Tolerance
1
G1/8-28
9.728
9.514
0.214
8.566
8.848
0.282
2
G1/4-19
13.157
12.907
0.25
11.445
11.89
0.045
3
G3/8-19
16.662
16.412
0.25
14.95
15.395
0.045
4
G1/2-14
20.955
20.671
0.284
18.631
19.172
0.541
5
G3/4-14
26.441
26.157
0.284
24.117
24.658
0.541
6
G1-11
33.249
32.889
0.36
30.291
30.931
0.64
7
G11/4-11
41.91
41.55
0.36
38.952
39.592
0.64
8
G11/2-11
47.803
47.443
0.36
44.845
45.485
0.64
